Low Cost Water Cooled Secondary Cable Kickless Cable Industry Welding

Name: Low Cost Water Cooled Secondary Cable Kickless Cable Industry Welding
Brand: Xinweihan
Price: 85 USD

Quality Low Cost Water Cooled Secondary Cable Kickless Cable Industry Welding wholesale

Model Number : Normal

Brand Name : Xinweihan

Place of Origin : Sichuan, China

Certification : CE, CCC, ISO

MOQ : 10 sets

Price : $85-330 / set

Conductor Material : Copper

Insulation Material : Rubber

Size : Can Be Customized

Application : Industry Welding

Jacket : Rubber

Type : Low Voltage, Water Cooled

Product name : Secondary Cable Water Cooled

Usage : Welding

Color : Black

Model : Customized

Package : Customers' Requirement

Cable Type : Depend

Material : Copper

Voltage : Depend

Contact Now

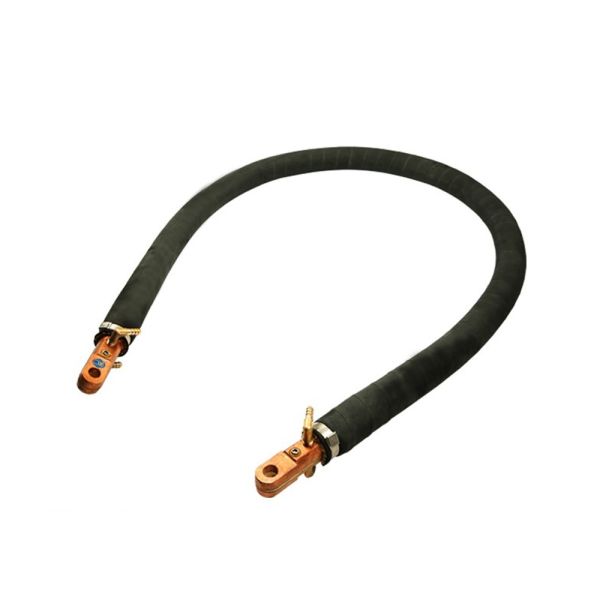

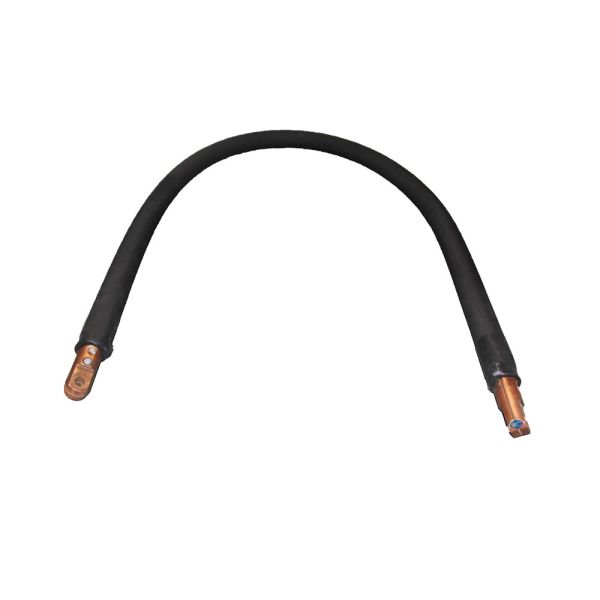

Low Cost Water Cooled Secondary Cable Kickless Cable Industry Welding

Kickless Cale

Secondary Cable

Product Description

Kickless Cable/ Secondary Cable belongs to a type of insulated conductor or cable distinguished by shape. It is a type of water cable with small cross-section, high working current, and good cooling effect. It is suitable for use on electrical equipment working under low voltage and high current, and can be easily bent and moved. The main technical feature is that the cable uses soft copper wire as the conductor, and the outer layer is covered with rubber water pipe. There is a water passage space between the cable and the rubber water pipe, The copper joints at both ends of the cable are welded together with the cable, and the steel jacket is connected to the copper joint. The copper joint is equipped with internal water holes to connect with the water space of the water cable.

Technical Parameters

Item specifiction		300mm²	400mm²
Impedance	2.0M	480±15μΩ	358±15μΩ
Impedance		2.4M	593±15μΩ	445±15μΩ
Dc impedance value	2.0M	475μΩ	355μΩ
Dc impedance value		2.4M	587μΩ	440μΩ
Resistance	2.0M	78μΩ	74μΩ
Resistance		2.4M	82μΩ	88μΩ
Power		=0.99	=0.99
Cooling water capacity		7.0L/Min	7.0L/Min
Temperature rise characteristic	2.0M	45℃/5900A	45℃/6800A
Temperature rise characteristic		2.4M	45℃/5400A	45℃/6200A
Weight	2.0M	10.4kg	13.2kg
Weight		2.4M	12.2kg	15.3kg

Main Features

1.High-quality copper wire, making the least electrical impedance between the transformer output and welding gun

2.Great flexibility during the work

3.Smallest water pressure drop and good cooling effect

4.The pouches and plum plastic core against the pressure, heat and abrasive, with maximum torsion flexion performance

5. lowest magnetic induction impact.

6. Easy to be replaced

7. Long life span and economic

Detail Images

Scene images
